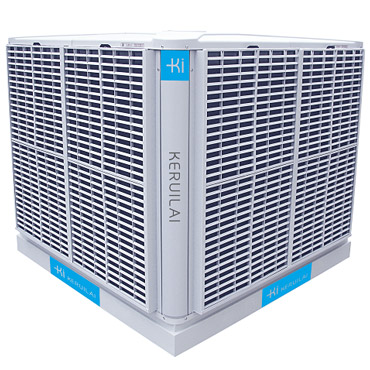

KS30A

  • High performance cooling pads

  • Compact and light-weight design to facilitate the installation and transportation

  • Stainless steel chassis to extend the service life

  • Auto Clean available to keep tank and water clean all the time and thereby also prevent frequent clogging of pads

  • High quality air pre-filter to protect the cooling pad


    • General Feature
    Discharge Type Bottom
    Cooling Capacity* KW 80
    Nominal Max Airflow (m3/h) 30000
    Motor Power (KW) 2.2
    Evaporative Efficiency* (%) 86
    Evaporative Capacity* (L/h) 117
    Sound Pressure Level @1m dB(A) 78
    Water Tank Volume (L) 65
    Air Outlet Dimensions (mm) 800 x 800
    Unit Size (mm) 1500 x 1500 x 1380
    Net Weight (Kg) 175
    Running Weight (Kg) 270
    Shipping Quantity (40HQ) 7(SKD)
    Voltage/Hertz/Phase (V/Hz/Ph) 220/60/3, 380-415/50/3
